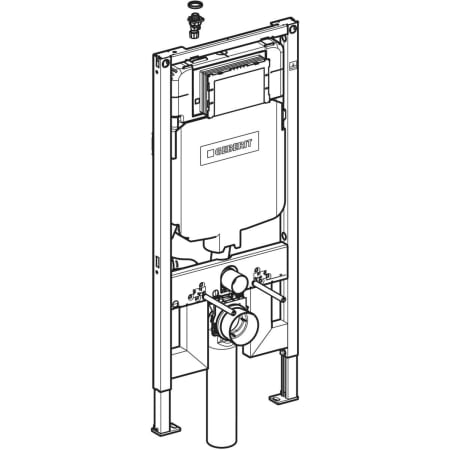

Geberit Duofix element for wall-hung WC, 114 cm, with Sigma concealed cistern 8 cm
My list (0)
Technical data
Flow pressure 10–1000 kPa |
Operating temperature, water max. 25 °C |
Flush volume, factory setting 4.5 / 3 l |
Flush volume large, adjustment range 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 3–4 l |
Height-adjustable No |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Range 2016Statically self-supporting frame, protected against corrosion with powder coatingFrame with ø 9 mm drilling holes for fastening in wood frame constructionFrame suitable for ceramic WC appliances with small contact surface (with pressure-resistant wall covering)Galvanized feetLeg supports infinitely variable in heightNon-slip leg supportsFoot plate depth suitable for installation in U-profiles UW 50 and Geberit Duofix system railsConnection bend can be installed without tools at different depthsConnection bend can be mounted vertically with front flushFastening for connection bend, sound-absorbing
Concealed cistern with front actuationConcealed cistern, fully insulated against condensationCistern fulfils standard requirements in accordance with AS 1172.2:2004Immediate post flush possible with factory settingTool-free installation and maintenance work on concealed cisternWater supply connection on the top leftWater supply connection, dezincification-resistantProtection cover box for service opening protects against moisture and dirtProtection box for service opening can be cut to length, suitable for surface-even actuator platesWith conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cableFastening option for electrical connection
Scope of delivery
Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
Protection box for service opening
Connection set for WC, ø 90 mm
Connection bend 90° made of PE-HD, ø 90 mm
Sleeve made of EPDM, ø 90 / 110 mm
Pipe bracket support
2 protection plugs
2 threaded rods M12
Fastening material
Documents
Your input does not return any results
Films
Spare parts
Geberit Duofix elements for wall-hung WC, with Sigma concealed cistern 8 cm (UP720), (from year of manufacture 2016)
Geberit Duofix elements for wall-hung WC, with Sigma concealed cistern 8 cm (UP720), (from year of manufacture 2016)
2010 - 2025
| # | Art. no. | Description | Replacement for |
|---|---|---|---|
| 1 | 111.013.00.1 | Duofix wall anchoring for Sigma8(2016) set-2 | 242.048.00.1 |
| 2 | Go to the spare parts page: | ||
| 3 | 242.421.00.1 | Waste Bracket set Sigma8 | |
