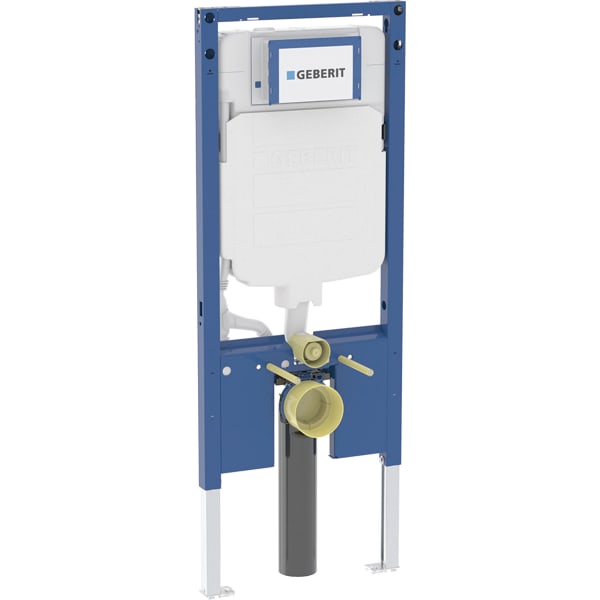

Geberit Duofix element for wall-hung WC, 114 cm, with Sigma concealed cistern 8 cm
My list (0)
Technical data
Flow pressure 10–1000 kPa |
Operating temperature, water max. 25 °C |
Flush volume, factory setting 6 / 3 l |
Flush volume large, adjustment range 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 3–4 l |
Product material Steel |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
2025 rangeStatically self-supporting frame, protected against corrosion with powder coatingFrame for wall-hung WCs with connection dimensions as per EN 33 and projection up to 70 cmWith pull-out plate for lateral fastening above the element on metal or wood profiles or on Geberit Duofix system studsAlternative fastening point for wall anchorsRotating foot plates, suitable for installation in U profiles UW 50 and UW 75Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional componentsGalvanised non-slip leg supports protected against corrosionConnection bend can be mounted without tools at different depths, adjustable range 80 mmInterrupted crossbar enables a front flush depth for the vertical outlet bend
Waste connector bend, extended, for connection in floorGeberit Sigma concealed cistern 8 cm, fully insulated against condensationCistern fulfils standard requirements in accordance with AS 1172.2:2004For front actuation, suitable for single, dual and stop-and-go flushesImmediate post flush possible with factory settingTool-free installation and maintenance work on concealed cisternWater supply connection on the top leftProtection box for service opening, can be cut to length, protects against moisture and dirtWith conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cableFastening option for electrical connection
Scope of delivery
Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
Protection box for service opening
Connection set for WC, ø 90 mm
Connection bend 90° made of PE-HD, ø 90 mm
Sleeve made of EPDM, ø 90 / 110 mm
Fastening and protection material
Documents
Your input does not return any results
Spare parts
Geberit Duofix elements for wall-hung WC, with Sigma concealed cistern 8 cm (UP720), (from year of manufacture 2016)
Geberit Duofix elements for wall-hung WC, with Sigma concealed cistern 8 cm (UP720), (from year of manufacture 2016)
2010 -
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 111.013.00.1 | Duofix wall anchoring for Sigma8(2016) set-2 | 242.048.00.1 | |
| 2 | Go to the spare parts page: | |||
| 3 | 242.421.00.1 | Waste Bracket set Sigma8 | ||
