Flow pressure 10–1000 kPa |
Operating temperature, water max. 25 °C |
Flush volume, factory setting 4.5 / 3 l |
Flush volume large, adjustment range 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 3–4 l |
Product material Plastic |

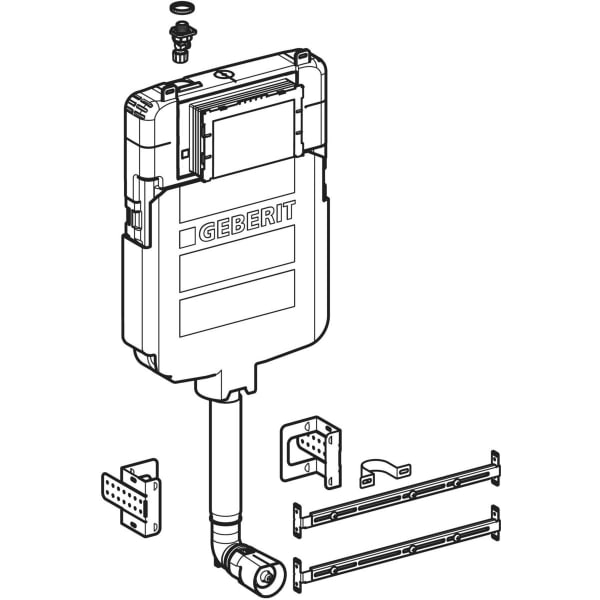

Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
Protection box for service opening
Flush bend 90°
Flush bend extension, ø 45 mm
Fastening for flush bend
2 sleeves made of EPDM
Protection plug
Fastening material for drywall
Your input does not return any results
# | Art. no. | Description | Replacement for |
---|---|---|---|
2 | 240.847.00.1 | Stop valve DR-Brass, for UP120/UP172/UP300 | |
3 | 243.357.00.1 | Hose Sigma8(2016) | |
4 | 243.279.00.1 | Inlet valve clip - Sigma8(2016) | |
19 Articles
