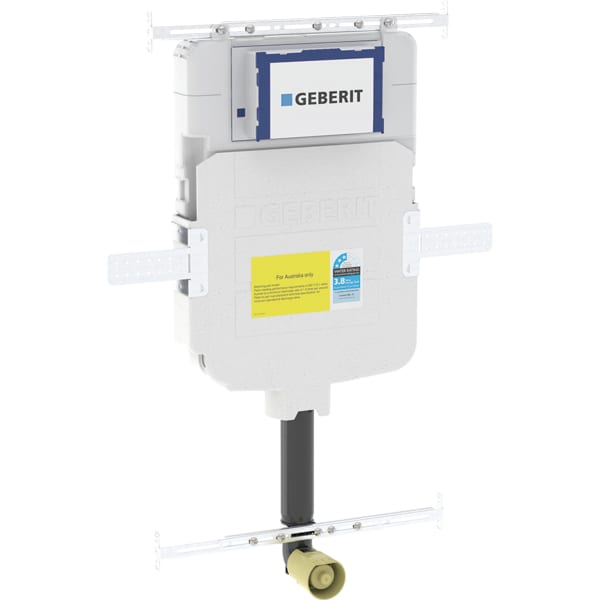

Geberit Sigma concealed cistern 8 cm, 6 / 3 litres
My list (0)
Technical data
Flow pressure 10–1000 kPa |
Operating temperature, water max. 25 °C |
Flush volume, factory setting 6 / 3 l |
Flush volume large, adjustment range 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 3–4 l |
Product material Plastic |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Range 2016Concealed cistern with front actuationConcealed cistern, fully insulated against condensationCistern fulfils standard requirements in accordance with AS 1172.2:2004Immediate post flush possible with factory settingFlush bend fitted
Tool-free installation and maintenance work on concealed cisternWater supply connection on the top leftWater supply connection, dezincification-resistantProtection cover box for service opening protects against moisture and dirtProtection box for service opening can be cut to length, suitable for surface-even actuator plates

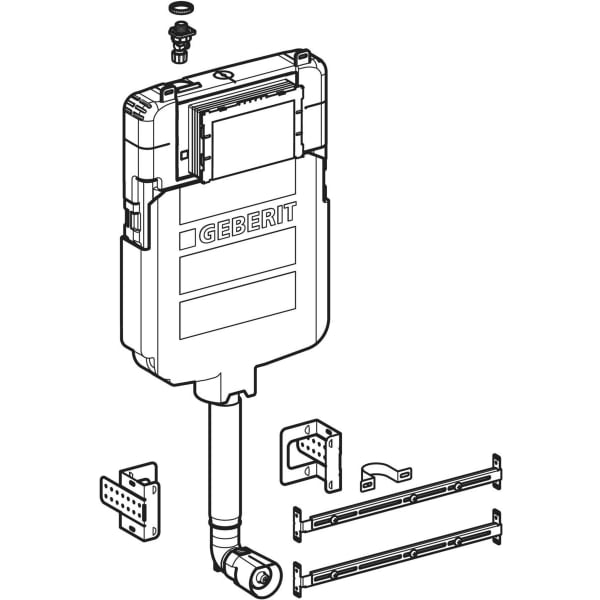

Scope of delivery
Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
Protection box for service opening
Flush bend 90°
Flush bend extension, ø 45 mm
Fastening for flush bend
2 sleeves made of EPDM
Protection plug
Fastening material for drywall
Documents
Your input does not return any results
Films
Spare parts
| # | Art. no. | Description | Replacement for |
|---|---|---|---|
| 2 | 240.847.00.1 | Stop valve DR-Brass, for UP120/UP172/UP300 | |
| 3 | 243.357.00.1 | Hose Sigma8(2016) | |
| 4 | 243.279.00.1 | Inlet valve clip - Sigma8(2016) | |
